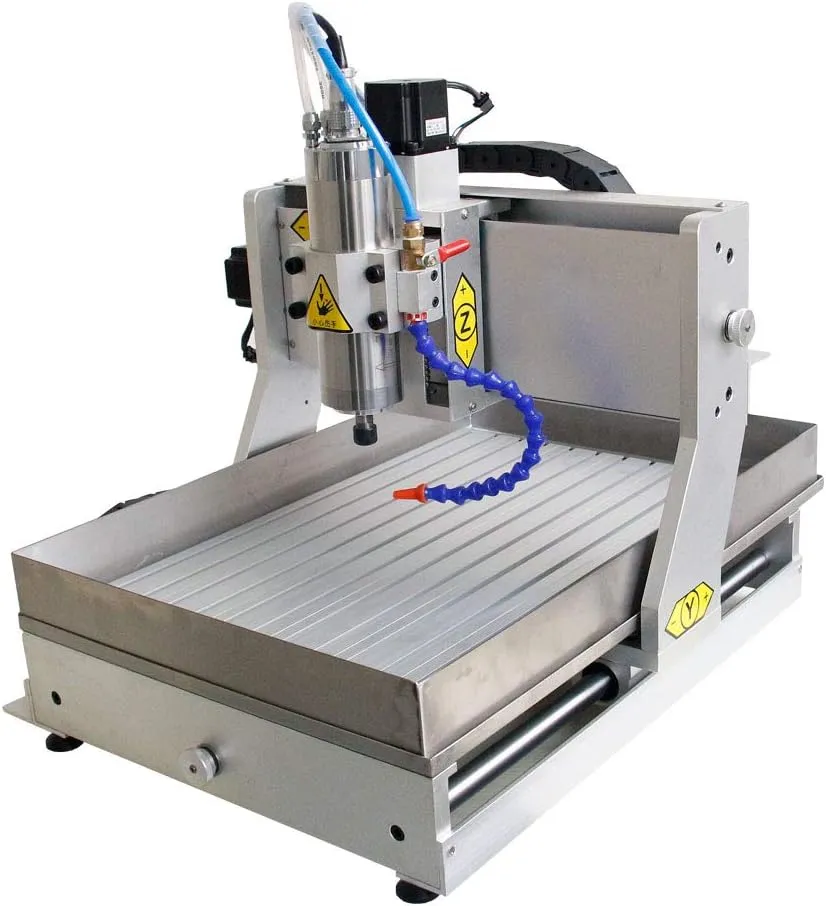

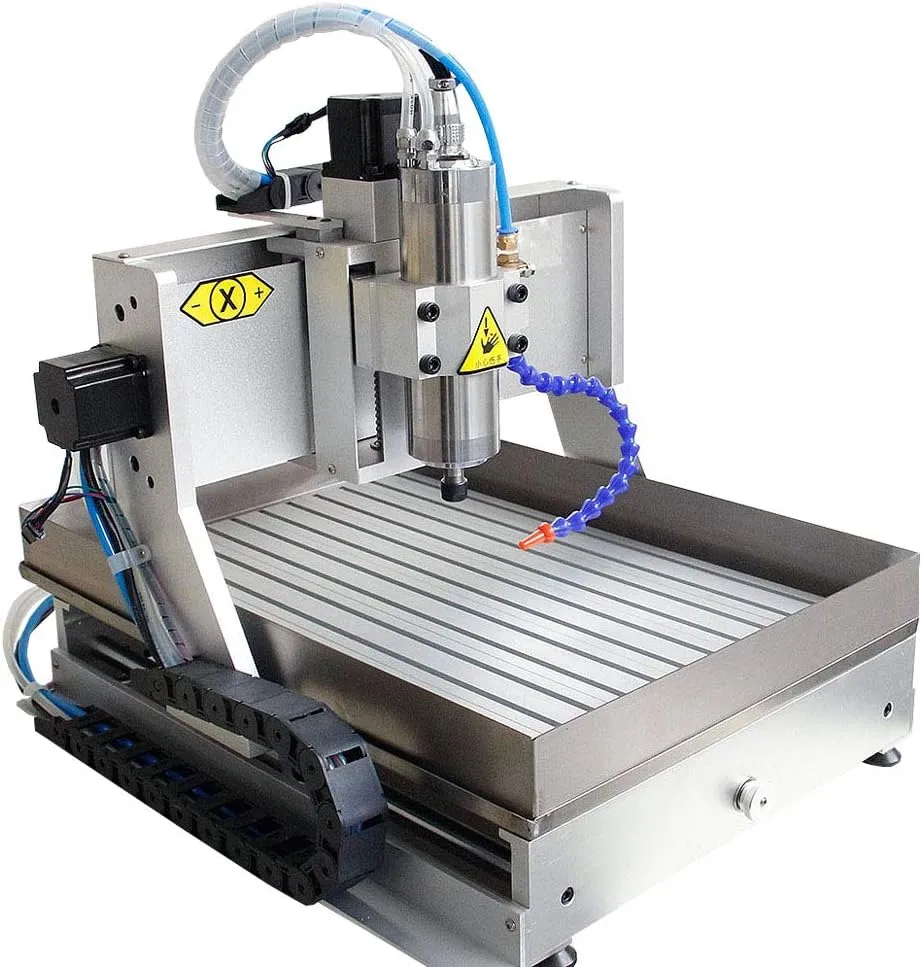

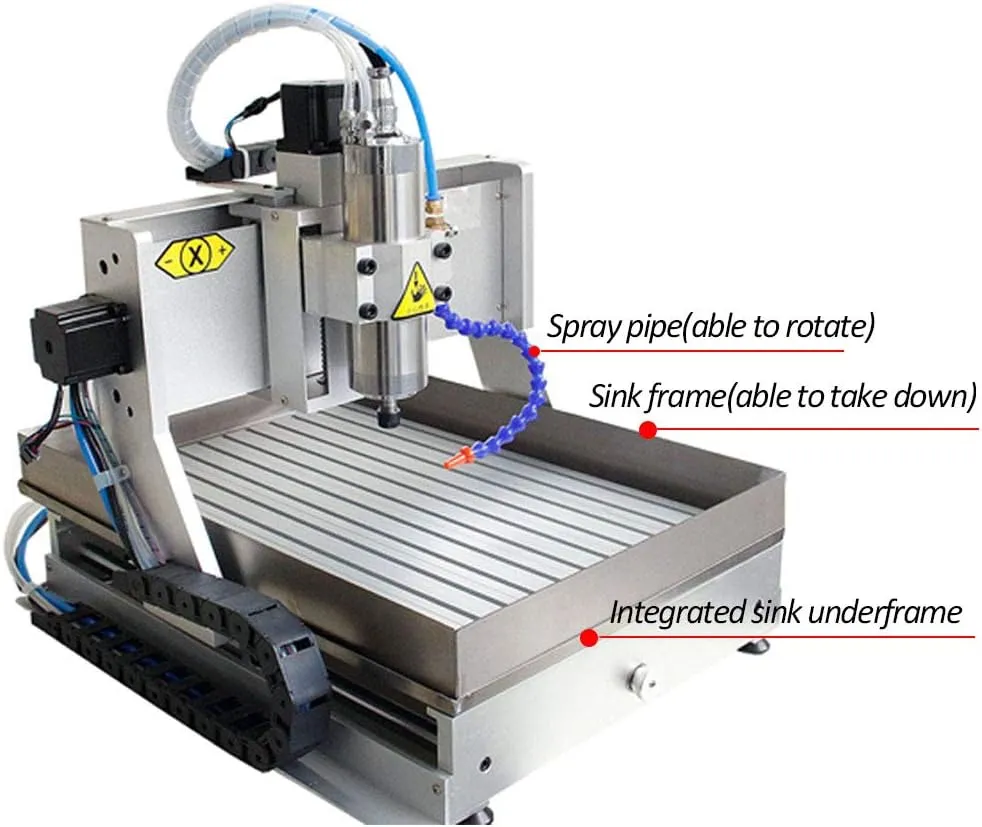

- 【UPGRADED FOURTH AXIS&SKINK】: Compared with the three-axis machine, the four-axis is not only suitable for plane engraving, but also for three-dimensional engraving and round carving. The jade and wood can be engraved 360°, and the power and clamping force are very stable. The sink is made of 304 stainless steel. In order to protect the tool and prevent the tool from heating when processing hard materials, the jade and metal must be filled with a sink.
- 【WITH USB PORT】This one is equiped with USB port, support different kind of systems (32bit and 64bit, both computer and laptop).
- 【APPLICATION】: Suitable for PVC, acrylic, two-color board, engineering plastics, Bakelite, solid wood, MDF board,bones,stone,graphite,and other soft metal materials (gold, silver, copper, aluminum, aluminum alloy) engraving and milling.
- 【BALL SCREW】: Upgraded ball screw to make the machine more accurate and stable during operation, with reversibility, high efficiency and low frictional resistance.
- 【WATER COOLING】: The main shaft adopts water-cooled motor, which has low noise and water circulation cooling. It can work for a long time without affecting performance, and the machining accuracy is higher.
Features:

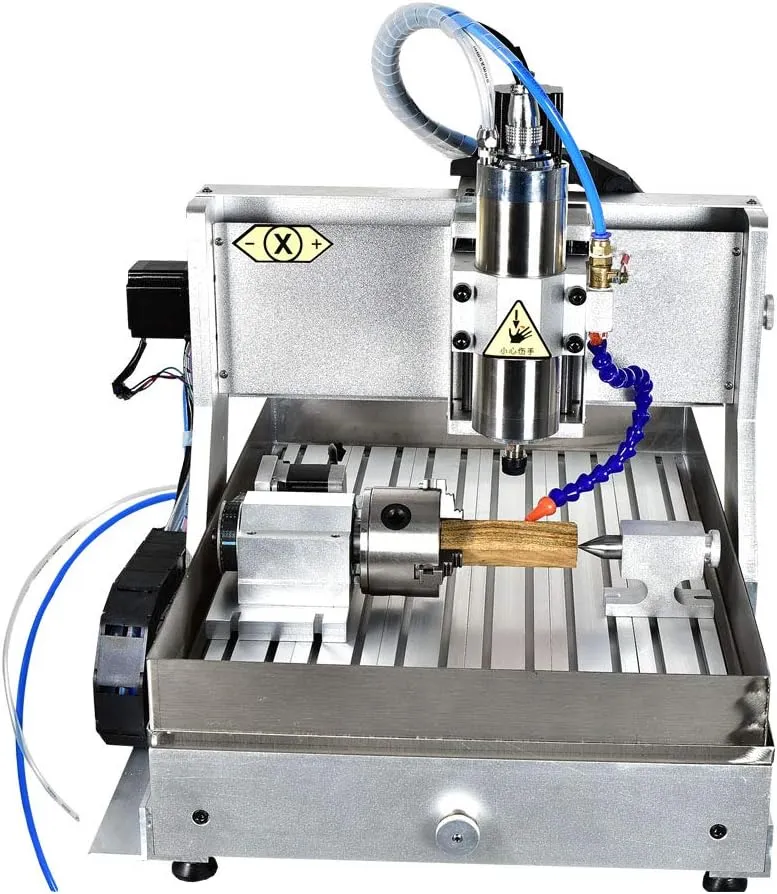

This machine is equipped with 4th Axis, 3D engraving can be achieved; with sink device, you can engrave jade and soft metal(aluminum, copper, gold, silver).
Suitable materials: wood, plastic, agate, jade, beeswax, shells, amber, stone, tooth, bamboo, acrylic, plexiglass, PVC, double color plate, all kinds of bones,soft metal, etc.
Specifications:
Model: 6090CNC-800-USB-4AXIS-S
Dimension: 1200×780×580mm
Working Travel: 600*900*125mm
Workpieces height: ≤ 125mm
Working table: T-slot aluminum alloy(1135×700mm)
Structure Material: 6061-T6 Aluminum Alloy
Screw: Import 1605 ball screw
X guid: Diameter 20mm round guid
Y guid: Diameter 30mm round guid
Z guid: Diameter 12mm round guid
Spindle power: 800W Spindle
Spindle control: 1.5KW VFD
Spindle speed: 0-24000r/min
Spindle cooling way: water cooling
Spindle collet :ER11-6mm
Stepper: 57BYGH56-401A
Stepper driver: 8 division driver
NC code: Standard G code、nc、tab、mmg、PLt、eng、dxf
Engraving Precision: 0.03mm
repeated positioning accuracy: 0.02mm
Control software: Mach3
Communication port: usb port
Software running system: universal
Voltage: AC220V/AC110V Optional
Packing list:
1* engraving machine

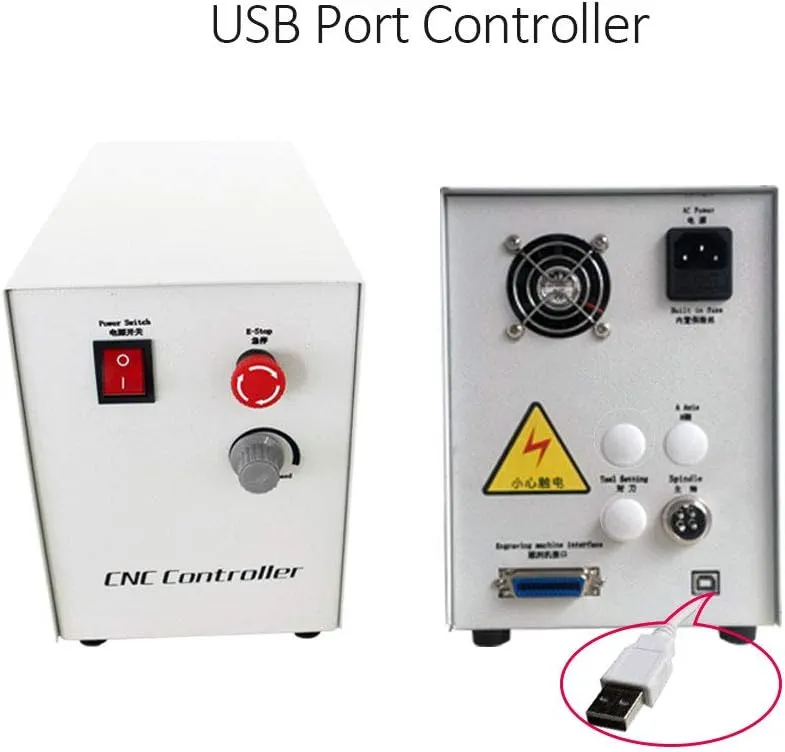

1* control box
5* engraving tools
1* spindle wrench
1* usb cable
1* power cord
1* machine connecting line
4* pressure plate
2* water pump
1* sink

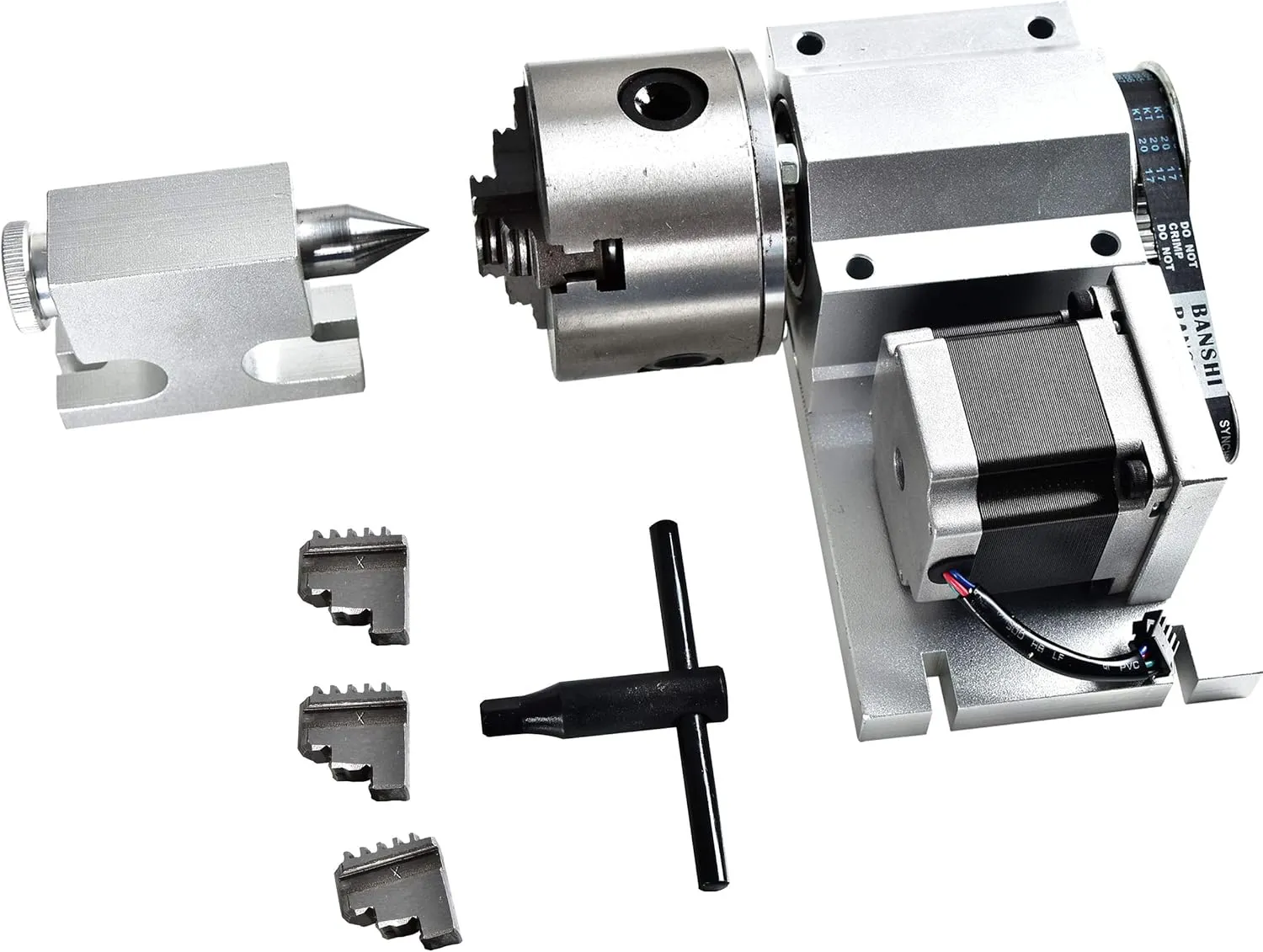

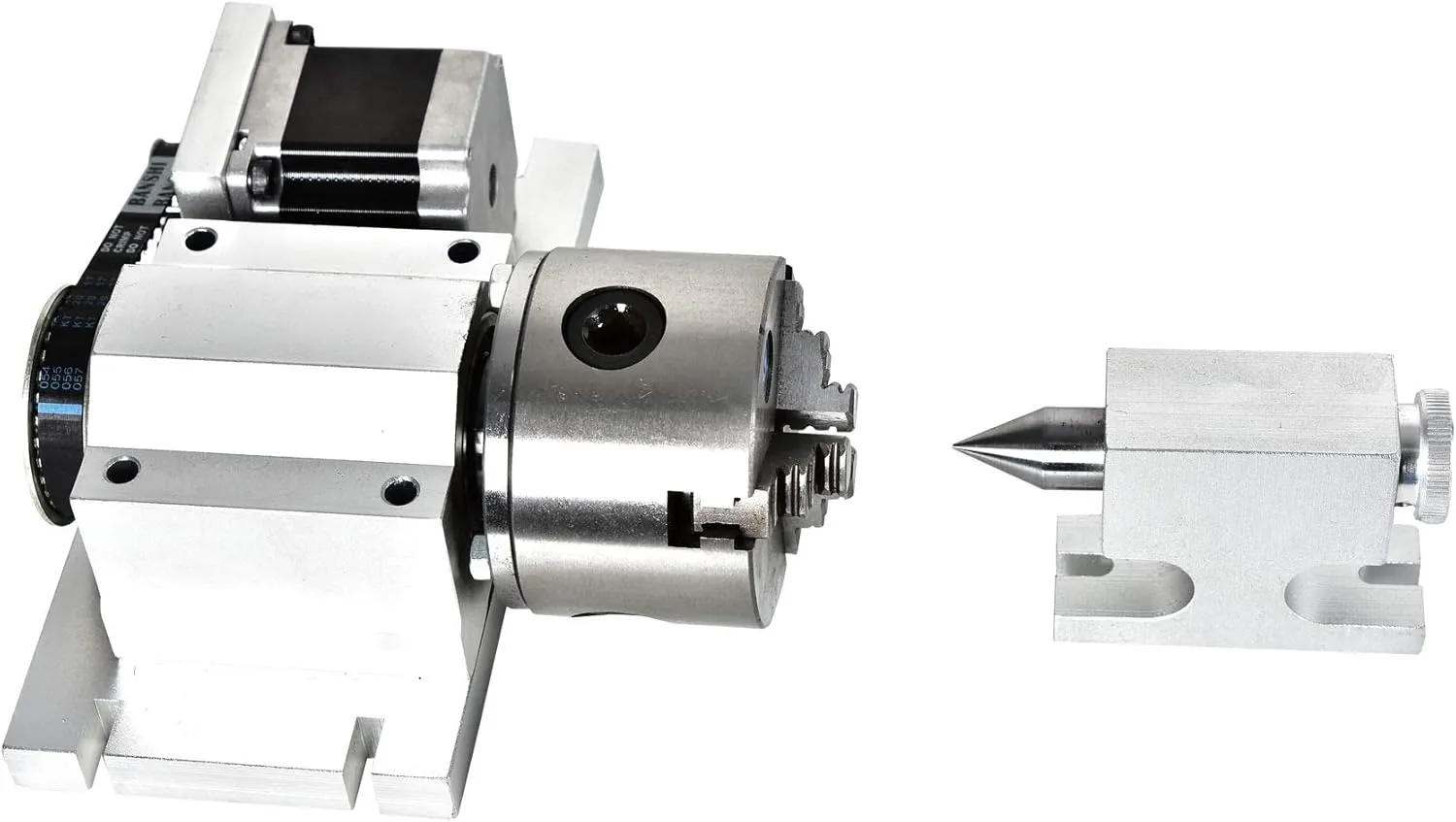

1* 4th Axis (one rotation axis, one connecting wire, one tailstock, six screws and nuts, one set of wrench and claw)
