- Thunderbolt 4 docking station for Thunderbolt 4 Windows laptops and Thunderbolt 3 and Thunderbolt 4 MacBooks (macOS 11 or later); if you have a Thunderbolt 3 Windows laptop, this is not the dock for you, see part # K34009US)
- Supports single 8K or dual 4K @ 60 Hz, single 4k @ 120Hz, or dual 1080P @120Hz Hz video output for Thunderbolt 4 devices; (note: any Macs with the M1, M2 or M3 chipset will only display to a single monitor due to Apple’s chipset limitations, but Macs with M1/M2/M3/M4 Pro or Max, and M4 base CPUs will work with dual displays)

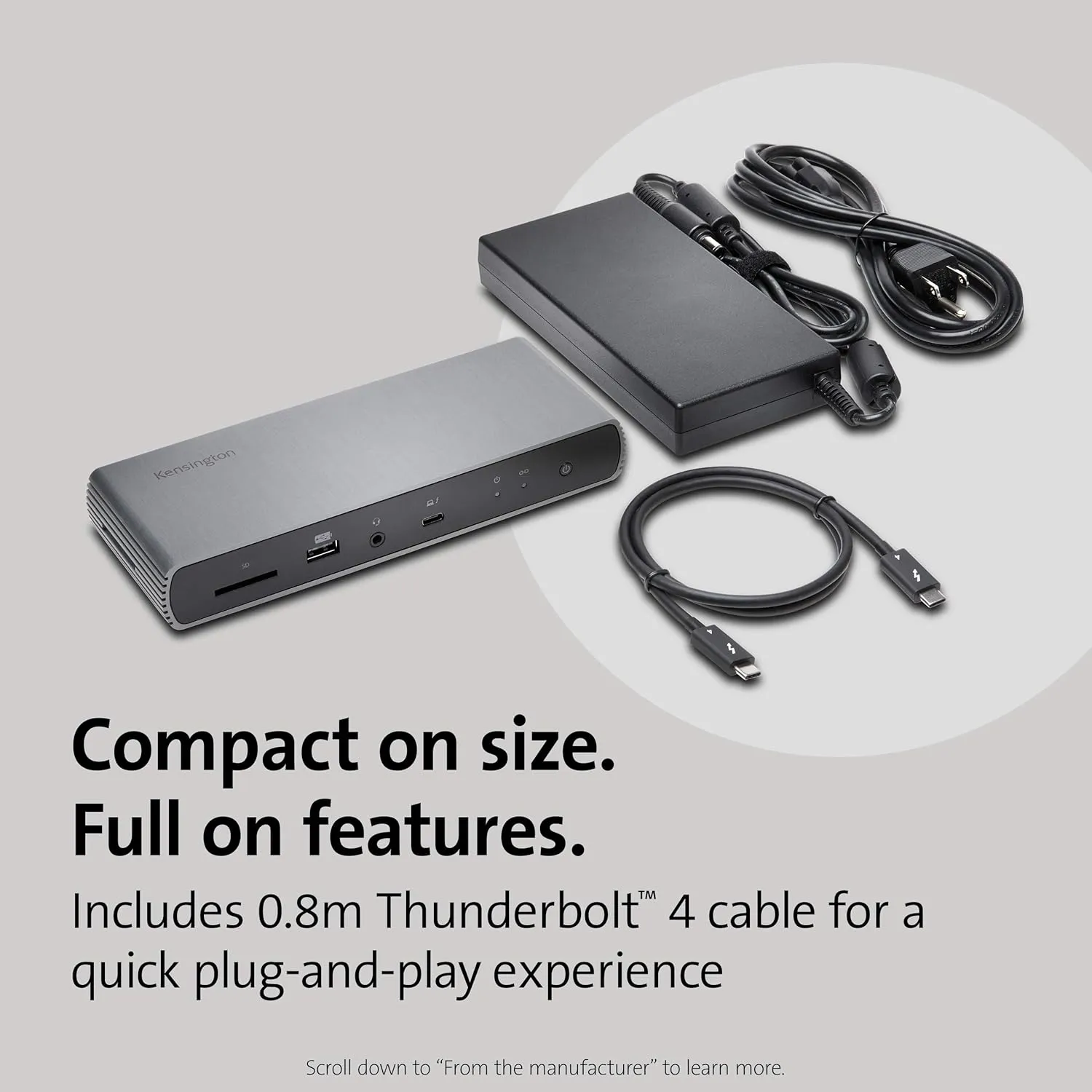

- Connect your laptop to the Thunderbolt 4 port (.8 meter Intel Certified TB4 cable included); connect your displays using one or two of the Thunderbolt 4 ports (usb-c to hdmi or usb-c to DisplayPort adapter or cable not included); unused Thunderbolt ports can connect directly to Thunderbolt devices (up to five additional via daisy chain, max 2 per port) while providing transfer speeds up to 40Gbps
- 180 Watt Power Supply delivers 90W power to charge your laptop; delivers additional power to run peripherals like hard drives, and for charging phones and tablets including Thunderbolt 4, Thunderbolt 3, USB 4.0, USB 3 and USB 2 peripherals
- Static charging technology provides 15W to each of the downstream Thunderbolt 4 ports without taking power from the laptop – laptop still receives full 90W of power even when all other ports are utilized; other Thunderbolt 4 docks will divert power away from the laptop
- Three Thunderbolt 4 downstream ports (all capable of data, video and audio and 15w power each); SD card reader (UHS-II SD 4.0); four USB-A ports (one 5V/1.5A charging port and three Gen2@10Gbps ports); one Gigabit Ethernet port; one audio combo jack; on/off switch Vesa mounting holes (see Kensington mounting bracket, part # K34050WW); Kensington lock slot (for a lock see part #K65035AM or K60600WW)
- DockWorks WiFi Auto-Switch guarantees the fastest, most reliable internet connection; while MAC Address ID Pass-Through and Reset, and Device Connection Monitoring give IT managers maximum network monitoring and visibility; Intel VT-d DMA protection blocks peripheral devices from unauthorized access to system memory.

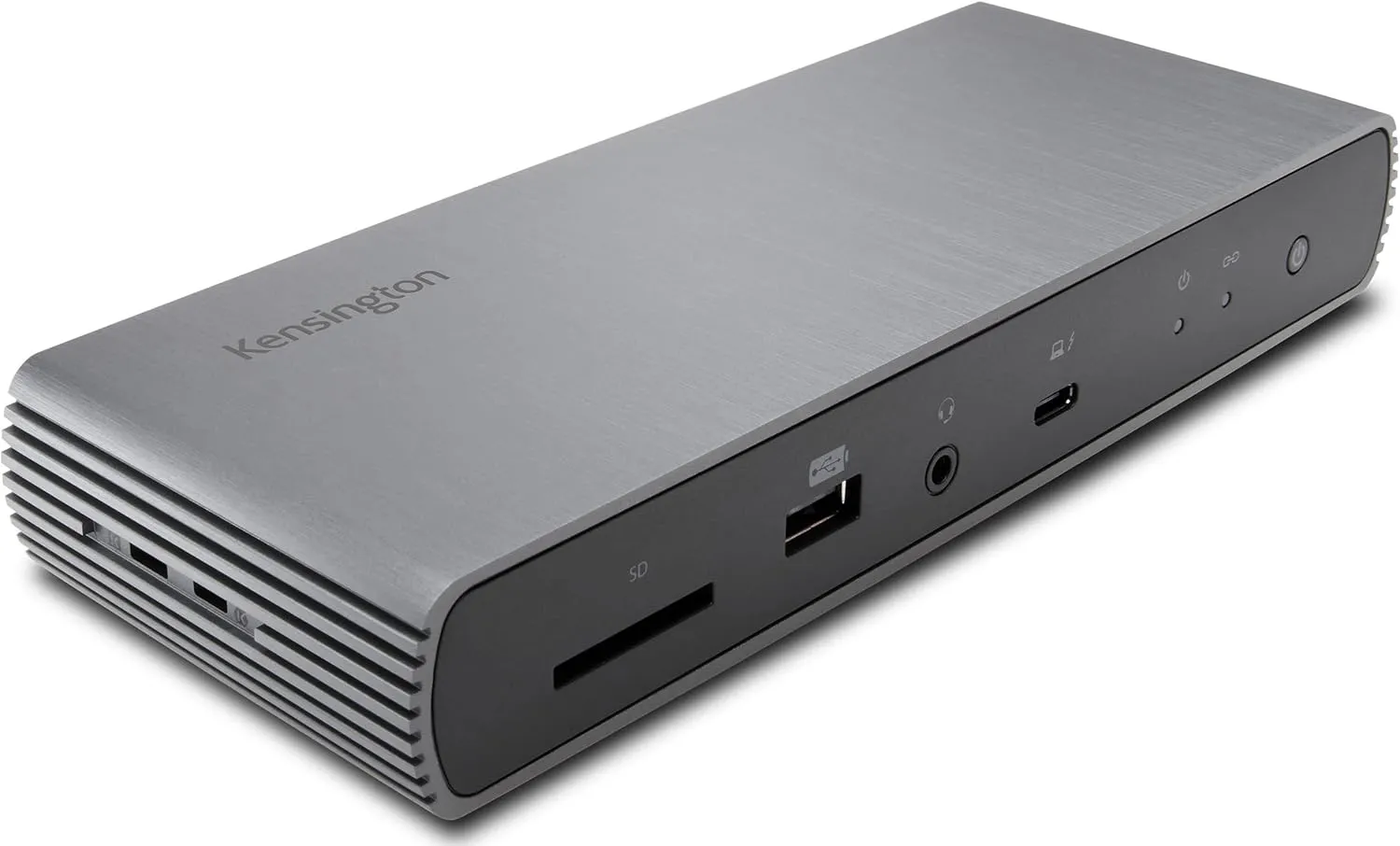

The first of a generation, the SD5700T Thunderbolt 4 Dual 4K Docking Station with 90W PD - Win/Mac offers premium Thunderbolt benefits now, and well into the future; compatible with Thunderbolt 4-enabled Windows 10 laptops and backward compatibility with Thunderbolt 3 MacBooks running macOS 11 (Big Sur) or later, supports USB-C and USB 4.0 accessories and provides full power delivery, regardless of how many devices are connected. Features include 11-ports, Single 8K 30 Hz, or up to Dual 4K 60Hz video, 40Gbps data transfer speeds, UHS-II SD 4.0 card reader speeds, and more.
